Freeform AT A GLANCE...
The Freeform is a lightweight, 10-spoke design that is developed with flow forming technology that offers benefits for both track and street use. Motorsport inspired, the Freeform’s spoke profile design lends to efficient brake cooling as well as exceptional brake caliper clearance. With widths up to 10.5″ wide, toughening up the stance on many popular vehicles isn’t a problem. With any wheel Konig develops with Flow Forming Technology, the end result is stronger, lighter and offers greater elongation and shock resistance when compared to a traditional cast design. The Freeform is offered in 15×7.5″, 15×8″, 15×9.5″, 17×8″, 17×9″, 18×8.5″, 18×9″, 18×9.5″, 18×10.5″, 19×8.5″, 19×9.5″, 19×10.5″ and finished in Radium Bronze and Matte Silver.
View Specs & Sizing
BUY NOW!-
15x7.5
15x8
15x9.5 -
17x8
17x9 -
18x8.5
18x9
18x9.5
18x10.5 -
19x8.5
19x9.5
19x10.5
Sizing:
-
4-Lug- 5-Lug
6-Lug- Lightweight
- Low Offsets
- Flow Formed
- Back Cut
- Ball Cut
- Knurled Bead Seats
Features:
What is Flow Forming?
Flow Forming Technology involves the application of pressure to the inner barrel of the wheel, while spinning & after it has been casted. This process shares similarities to that found in the forging process in which the aluminum molecules are compressed resulting in a lighter & stronger wheel with greater shock resistance & elongation properties.
The process of flow forming starts out with a precisely casted wheel that’s narrower then its final width.
The wheel is spun under heat while applying pressure to the inner wheel.
The end result has arrived to it’s desired width & is now stronger, lighter & shares properties of that of a forged wheel.
Freeform
Freeform
Specs / Sizing
Images / Fitment

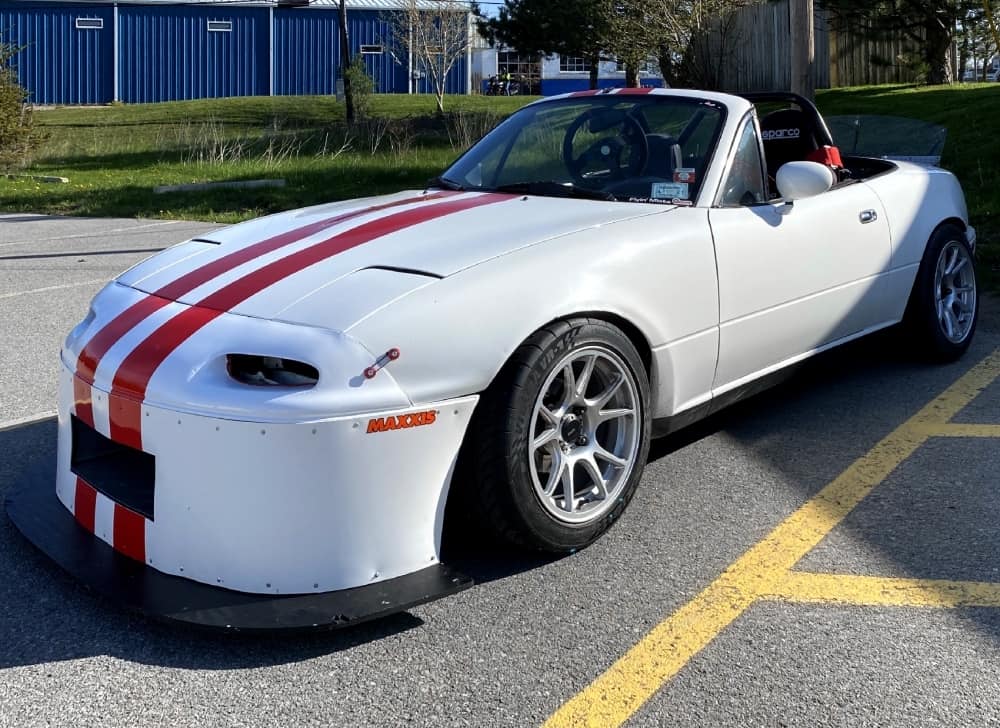

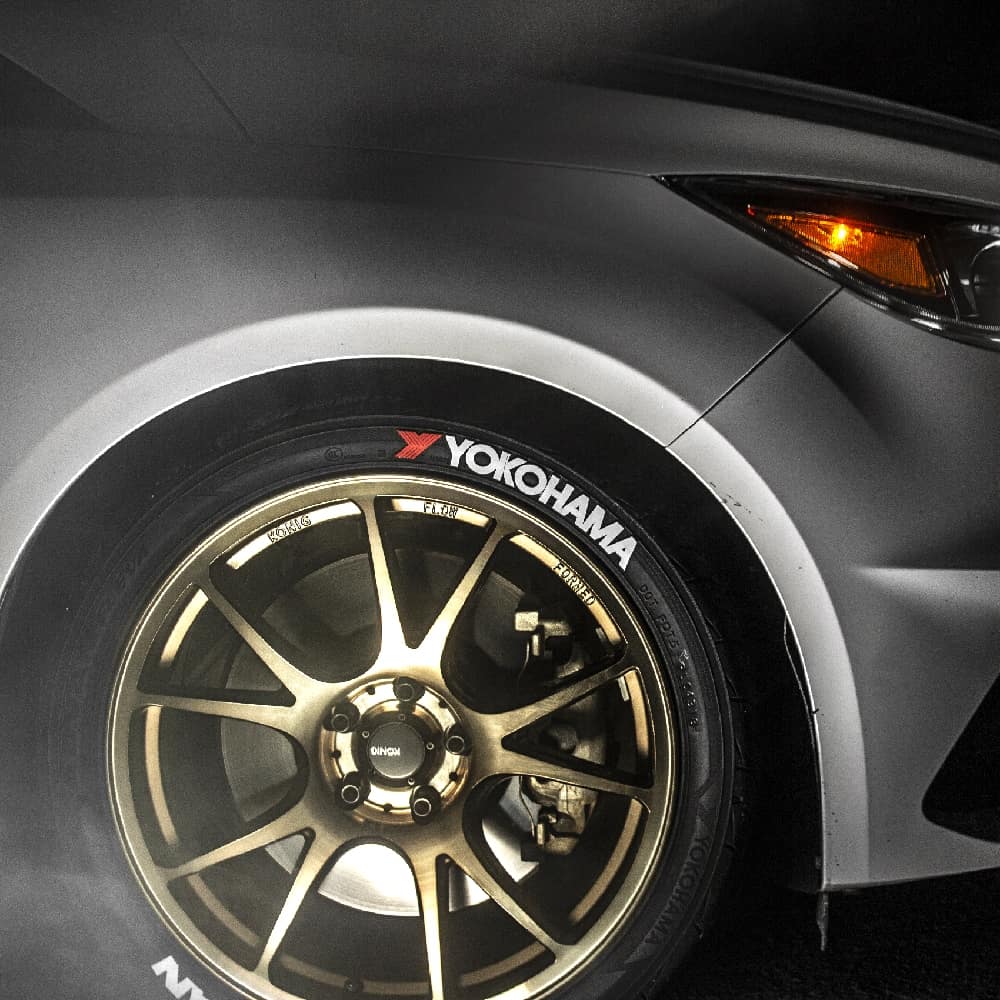

See more Freeform pictures.

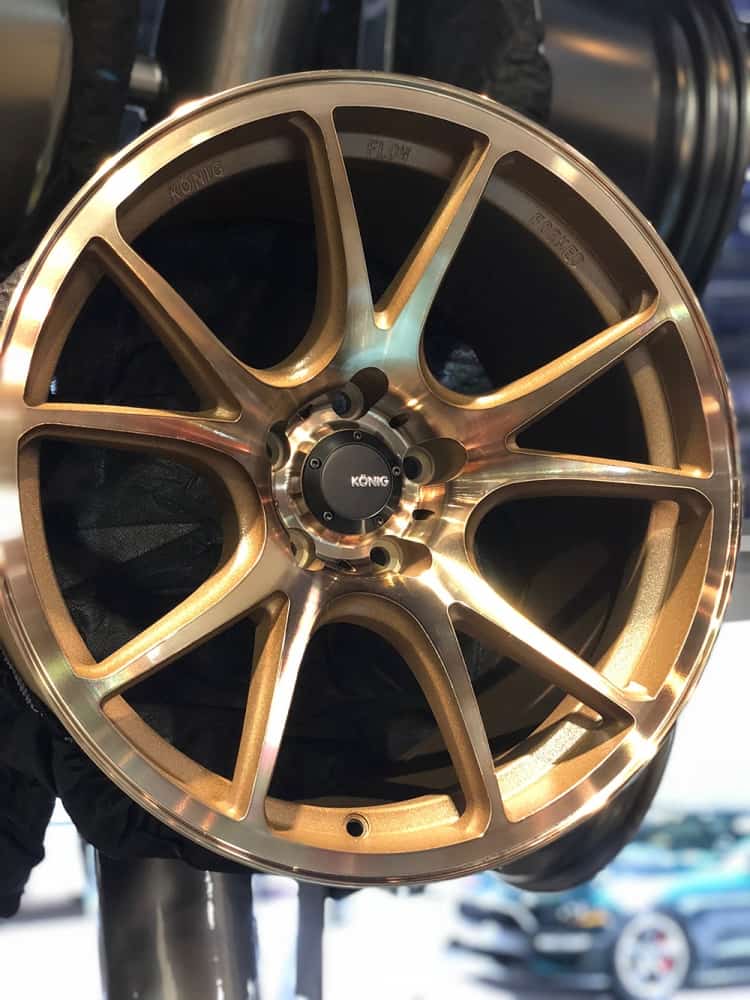

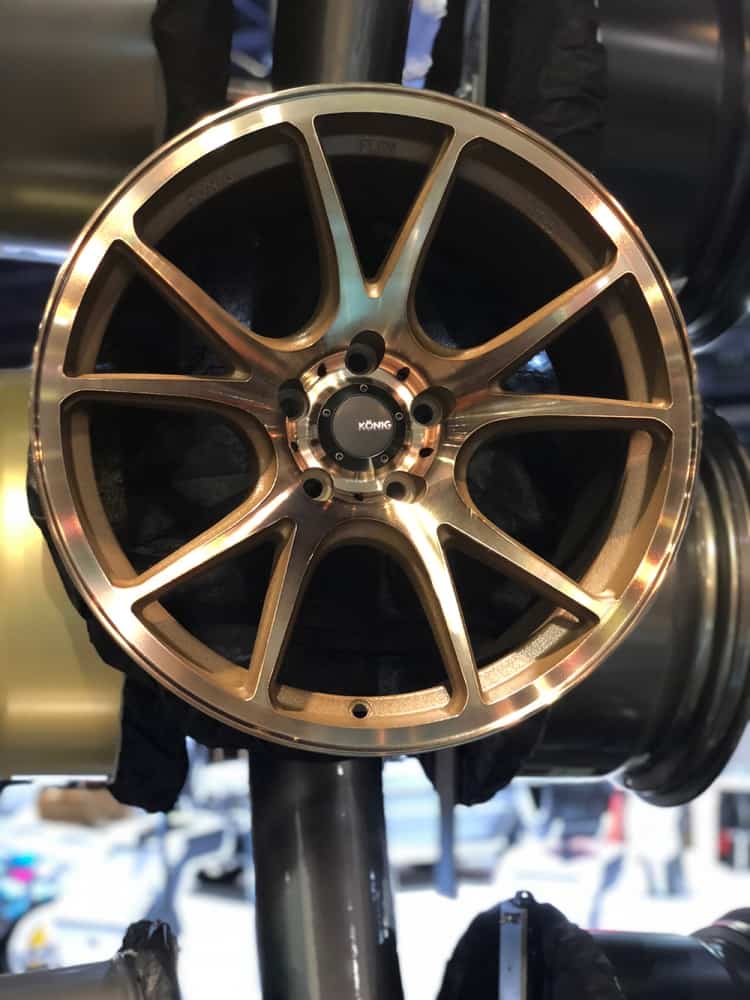

Radium Bronze

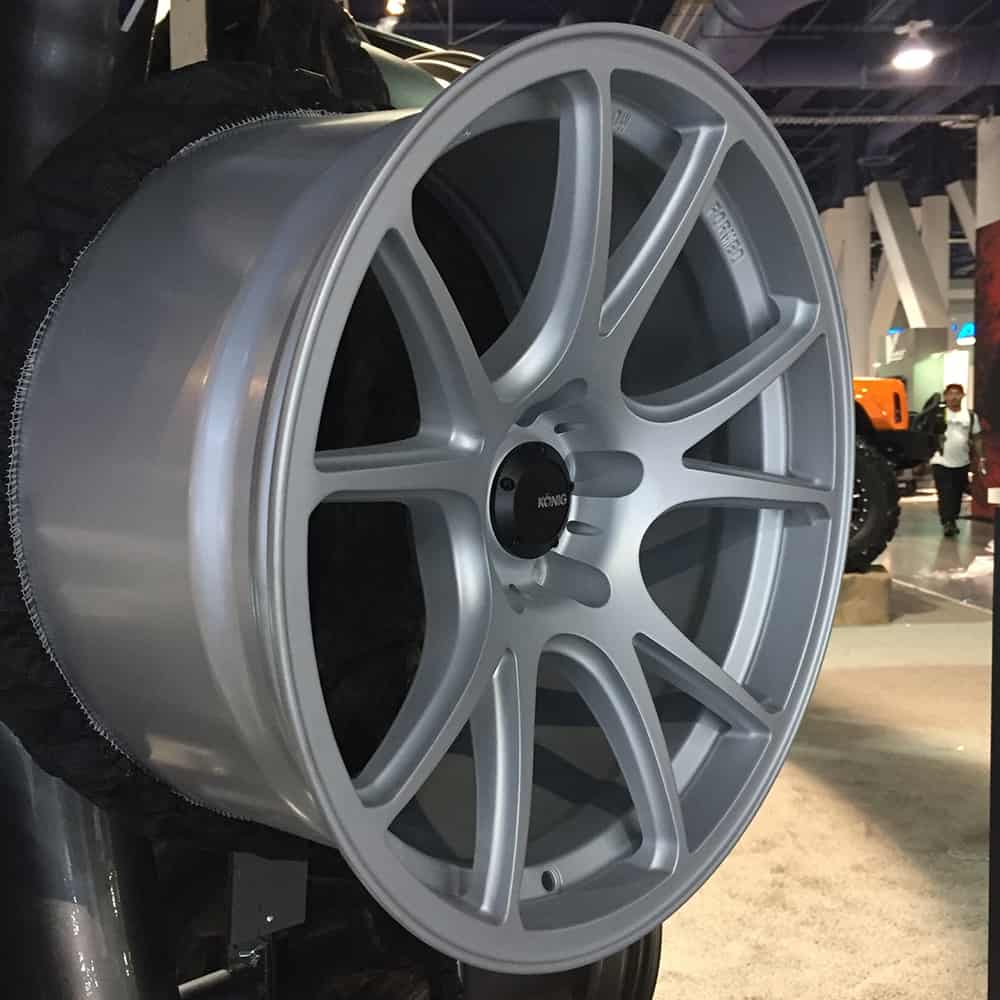

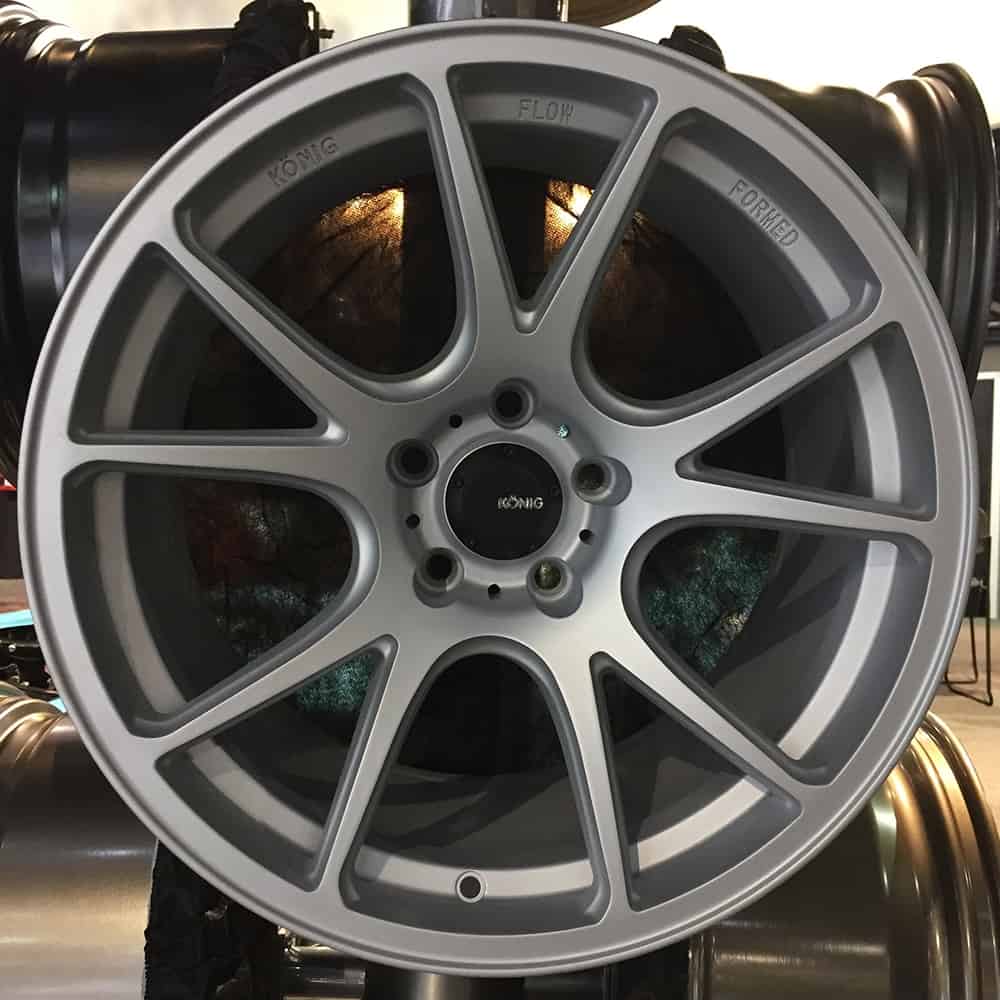

Matte Silver
Click/Tap to view finishes
